Slew Ring Bearing – Manufacturers & Suppliers

Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Certificated has 3.1,3.2,ABS,CCS.Our team with technical and full experience in the bearing industry. And with a worldwide network, allows us to resolve any bearing issue for you. LYMC bearings are the perfect alternative to the most common and well-known brands.

our services

We produce None gear,Internal gear&External gear slewing ring bearing

Swing Bearing Design

There are 7 experienced technicians,according the clients requirements to design which they need.Help them solve slewing bearing problem.

Bearing Production Tracking

Tracking and give the production schedule from Turning to Assemble line.Customer know very well for each step.

LYMC Market

Our main market is USA, Malaysia, Serbia,Czechoslovakia, Netherlands, Russia, Vietnam, Ireland and etc.

Luoyang MC Bearing Service

Any reply will be within 24hours.Follow up the products from they leave the factory until the customer confirms receipt of the goods.No matter delivery by air or by ship.We trust that we can also become your most RELIABLE bearing supplier in China.

Slewing Ring Bearing Quality Control

Raw materials&Spare parts with quality assurance and inspection before produce, work-stage according to craft drawing, quality tracking card moves with the process, Record the inspection report of finished products.

Bearings Package And Shipping

MC’s production capacity and large storehouse can sure that deliver to our customers within the shortest time.For the normal types,we can finish within 35days,and the large quantity and more different types our usual delivery date will be within 45~60days upon specific situation.

Slewing Bearings Product Types

Slewing bearing with four-point contact ball bearing. Optimal economy and capacity for given dimensions or when replacing existing

FourPointContactBallSlewingBearing 自定义px 2021 11 1823 29 01 1

2021

Four Point Contact Ball Slewing Bearing

Four point contact ball slewing bearing which have external teeth, internal teeth and none teeth,be made up of two seat rings. Dia always choose from 100mm-3000mm,In this slewing ring bearing, the balls contact with the circular raceway at four points. The bearing can support axial force, radial force and resultant moment simultaneously.

MORE DETAILS

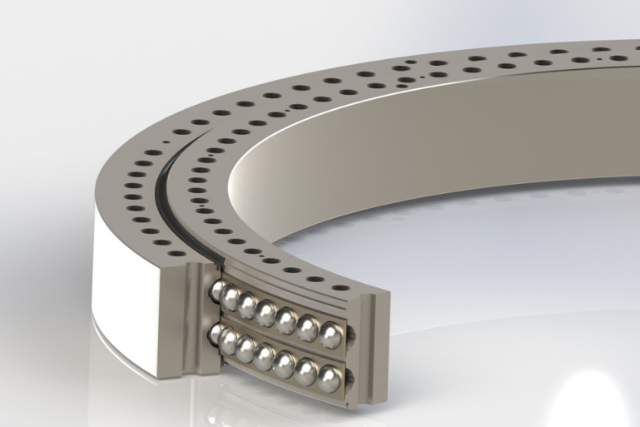

DoubleRowBallSlewingRingBearing 自定义px 2021 11 1823 32 59

2021

Double Row Ball Slewing Ring Bearing

Different diameter ball slewing bearing has three seats ring,the steel balls and the spaces may be directly arranged into upper and lower raceways.Ingeneral dia from 1000-3500mm,two rows of steelballs with different diameters are fitted according to the load.such open mode fiting features are very convenience.

MORE DETAILS


Luoyang MC Bearing Service:

Any reply will be within 24hours.Follow up the products from they leave the factory until the customer confirms receipt of the goods.No matter delivery by air or by ship.We trust that we can also become your most RELIABLE bearing supplier in China.


LYMC Market:

Our main market is USA, Malaysia, Serbia,Czechoslovakia, Netherlands, Russia, Vietnam, Ireland and etc.We believe in Win-Win Cooperation & receive good reputation from our customer.
MORE DETAILS


ThreeRowRollerSlewingRing 自定义px 2021 11 1823 34 26

2021

Three Row Roller Slewing Ring

Triple row cylindrical roller combined slewing bearing consists of three bearing rings. The adjusting spacer between upper bearing ring and lower bearing ring can adjust the axial internal clearance. which dia from 3000mm to 8000mm, material always use50Mn, 42Crmo .

Upper row rollers and lower row rollers are distributed horizontally, so as to support the axial forces and tilting moments from two directions. While radial force is supported by the third row rollers that are vertically distributed.

MORE DETAILS

CrossRollerSlewingBearing 自定义px 2021 11 1823 35 38

2021

Cross Roller Slewing Bearing

Crossed roller bearing incorporates two rings and is designed with compact construction, light weight, high precision, and small assembling clearance. The rollers are crossed one by one, enabling the slewing bearing to accommodate high axial, radial and tilting moment loads.Gear teeth on the outer ring,inner ring or withour gear teeth,bearing rings with through holes or threaded holes for fixing screws.

Cross roller bearing is suitable for hoisting equipment and other engineering machinery.The famous types are XA,XI,XU,SX,XSU,XV series.

MORE DETAILS

RARBSeriesRingBearing 自定义px 2021 11 1823 36 57

Chicago / 2008

RA RB Series Ring Bearing

Small crossed roller bearing,cylindrical rollers are arranged crosswise,with each roller perpendicular to the adjacent roller,separated from each other by a spacer ratainer.This design allows just one bearing to receive loads in all directions including,radial,axial and moment loads.

Since the Cross-roller Ring such as joints and swiveling units of industrial robots,swiveling tables of machining centers, precesion rotary tables,medical equipment,measuring instruments and IC manufacturing machines.

MORE DETAILS


If you are looking for a quality bearing instead of a bearing from a specific brand, then LYMC is the perfect solution. Choose us,No Worries.

6ec6b8bdbc31e2cd206b36840cddd4d2

Package Machinery

46fb72f9138d755174ae770d6b8f6fcf

Forest Vehicles

8cf38510dbcb59bcb76064e5e79cf0aa

Solar Energy

1d7bf21fc349661f39692b8701fddb10 1

Port Machiney

latest news & events

subscribe to out newsletter & get the latest news on time

high precision cylindrical roller bearing The method and advantage of artificial cleaning cylindrical rolling bearing During the use of cylindrical roller bearings, many substances that reduce the life of the cylindrical roller bearings will be attached. Timing cleaning can increase the life of the cylindrical roller bearings. When artificial cleaning, it is only suitable for […]

high speed ball slewing ring bearing in stock 1.How to reduce slewing ring bearing tooth noise? The slewing bearing can stably support the equipment for slewing motion, also known as the turntable bearing. The mechanical equipment needs to rotate without the transmission. The slewing bearing can be made of external teeth or internal teeth, and […]

How many types of slewing bearings? Slewing Bearing Types: Rotary bearing is a kind of special medium and large-sized bearing which can bear large radial load, axial load and overturning moment at the same time. There are several types of slewing bearings which are classified according to their structural forms, common rotary bearings are four-point […]
