cheap crossed roller slewing bearings manufacturers china

Crossed Roller Slewing Bearings

A crossed roller slewing bearing is a special type of bearing with a split inner ring and a rotating outer ring. Since the divided inner ring or outer ring is installed with the roller and spacer, it is fixed with the cross roller ring to prevent separation from each other, so it is easy to install the cross roller ring.

Since the rollers are arranged in a cross, only one set of Crossed Roller Slewing Bearings can withstand loads in all directions, and the rigidity is 3 to 4 times higher than that of conventional models. At the same time, since the inner ring or outer ring of the crossed roller slewing bearing is divided into two structures, the bearing clearance can be adjusted, and even if a preload is applied, high-precision rotational motion can be obtained. Moreover, due to its special structure, it is usually used as a joint bearing in industrial robots.

Their rollers are arranged at right angles to each other at intervals between the inner and outer wheels. They can bear loads from all directions at the same time (such as axial, thrust or momentum loads, etc.). Because the rollers are in linear contact with the track surface, the possibility of elastic deformation of the bearing under load is very small.

This type of bearing is widely used in such occasions as industrial automatic robots, working machinery and medical facilities, etc., where high rigidity, tightness and high speed are required to ensure accuracy.

In a crossed roller slewing bearing, since the cylindrical rollers are arranged perpendicular to each other through spacers, a single crossed roller bearing can withstand loads in all directions, including radial load, axial load, and moment load.

The size of the inner and outer rings is minimized, especially the ultra-thin type is a small size close to the limit, and has high rigidity, so it is most suitable for the joint part or rotating part of industrial robots, the rotary table of machining center, It is used for robot rotating parts, precision rotary tables, medical equipment, measuring instruments, IC manufacturing equipment, etc.

Use features
For crossed roller bearings, since the divided inner ring or outer ring is installed with the rollers and spacers, it is fixed with the crossed roller collar to prevent separation from each other, so it is necessary to install the crossed roller collar.

Simple. Since the rollers are arranged in a cross, only one set of  Crossed Roller Slewing Bearings can withstand loads in all directions, and the rigidity is 3 to 4 times higher than that of conventional models. At the same time, since the inner ring or outer ring of the crossed roller bearing is divided into two structures, the bearing clearance can be adjusted, and even if a preload is applied, high-precision rotational motion can be obtained.

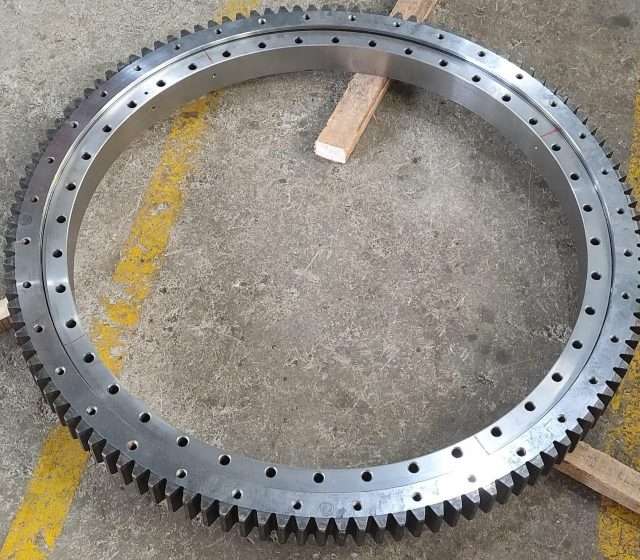

crossed roller slewing bearing Alt.

1. Excellent rotation accuracy

The internal structure of the crossed roller slewing bearing adopts the rollers arranged at 90° perpendicular to each other.

There are spacers or spacers between the rollers, which can prevent the rollers from rubbing against each other due to the inclination of the rollers. In addition, there is no contact phenomenon or locking phenomenon of one side of the roller; at the same time, because the inner and outer rings are divided structures, the gap can be adjusted, and even if a preload is applied, high-precision rotational motion can be obtained.

2. Simplified operation and installation

The outer ring or inner ring, which is divided into two parts, is fixed together after the rollers and cages are installed, so it is very easy to install.

3. Bear large axial and radial loads

Because the rollers are arranged perpendicular to each other on the 90° V-groove running surface by spacers.

4. Significantly save installation space

The size of the inner and outer rings of the crossed roller bearing is minimized, especially the ultra-thin structure is a small size close to the limit, and has high rigidity, so it is most suitable for the joint parts or rotating parts of industrial robots, and the rotation of machining centers. Widely used for worktables, manipulator rotating parts, precision rotary tables, medical instruments, measuring instruments, IC manufacturing equipment, etc.

5. High speed capability

6. Reduced shaft length and machining cost, limited change in geometry due to thermal expansion

7. Using nylon divider, low moment of inertia, low starting torque, easy to control angle indexing

8. Optimized pre-tightening force, high rigidity and high running accuracy of guide rollers

9. Carburized steel provides excellent impact resistance and surface wear resistance

10. Simple but well lubricated

Classification and Model Series of Domestic Crossed Cylindrical Roller Bearings

RB type (outer ring split type)

The RB series is the basic type of the crossed cylindrical roller bearing. The size of the inner and outer rings is minimized. Its structure is that the outer ring is a split type, and the inner ring is an integral design, which is suitable for parts that require high rotation accuracy of the inner ring. .

RE type (inner ring split type)

The RE series model is a new type produced by the design concept of the XRB type, and the main dimensions are the same as the XRB type. Its structure is that the inner ring is a split type, and the outer ring is a one-piece design, which is suitable for parts requiring high rotation accuracy of the outer ring.

RU type (inner and outer ring integrated type)

The RU series model does not need a fixed flange and a support seat due to the machining of the mounting holes. In addition, since the integrated inner and outer ring structure with seat is adopted, installation has little effect on performance, so stable rotation accuracy and torque can be obtained. Can be used for outer and inner ring rotation.

RBC type (outer ring split type)

The RBC series model (corresponding to the CRBC series of IKO company) has a structure that the outer ring is a split type, the inner ring is an integral design, and a full complement roller bearing with a cage. It is suitable for parts that require high rotation precision of the inner ring.

CRBH type (inner and outer ring integrated type)

The inner and outer rings of the CRBH series are of one-piece structure for rotation of the outer and inner rings.

RA type (outer ring split, ultra-thin type)

The RA series model is a compact model that reduces the thickness of the inner and outer rings of the RB type to the limit. Ideal for applications requiring a lightweight, compact design, such as robotic and manipulator rotation.

SX type (outer ring split type)

The structure of the SX series is similar to the RB series. The outer ring is a two-part structure, connected by three spring snap rings, and the inner ring is designed in one piece, which is suitable for places requiring high rotation precision of the inner ring.

XRU08 type (integrated type of inner and outer rings)

The XSU08 series is similar to the RU series, and the inner and outer rings have been processed with mounting holes, so there is no need for a fixed flange and a support seat. Due to the integrated inner and outer ring structure with seat, installation has little effect on performance, so stable rotation accuracy and torque can be obtained. Can be used for outer and inner ring rotation.

First thrust angular contact ball bearing
The contact angle of thrust angular contact ball bearings is generally 60°. Commonly used thrust angular contact ball bearings are generally bidirectional thrust angular contact ball bearings, which are mainly used for precision machine tool spindles. It has the advantages of high precision, good rigidity, low temperature rise, high speed, and convenient assembly and disassembly.

Second deep groove ball bearing
Structurally, each ring of a deep groove ball bearing has a continuous groove-type raceway with a cross-section of approximately one third of the equatorial circumference of the ball. Deep groove ball bearings are mainly used to bear radial loads, and can also bear certain axial loads. When the radial clearance of the rolling bearing increases, it has the properties of an angular contact ball bearing and can bear axial loads alternating in two directions.

Compared with other types of bearings of the same size, this type of bearing has a small friction coefficient, high limit speed and high precision, and is the preferred bearing type for users when selecting models. Deep groove ball bearings have a simple structure and are easy to use. They are the type of bearing with the largest production volume and the widest application range.

Third thrust tapered roller bearing
Since the rolling elements in the thrust tapered roller bearing are tapered rollers, the rolling busbar and the raceway busbar of the washer meet at a certain point on the axis of the bearing, so the rolling surface can form pure rolling and high limit speed. for thrust cylindrical roller bearings. Features: Thrust tapered roller bearings can withstand unidirectional axial loads. The type code of thrust tapered roller bearing is 90000 type.

Introduction to Crossed Cylindrical Roller Bearings

There are two types of crossed roller slewing bearings, one is crossed cylindrical roller bearings, the other is crossed tapered roller bearings; crossed roller bearings have a long history of application abroad, but only recently in China. It has only entered the public’s vision for a few years, and it is widely used due to its own particularity and incomparable advantages over other bearings.
