RKS.901175101001

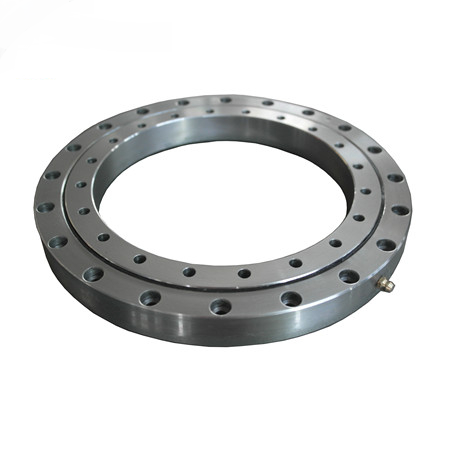

RKS.901175101001 slewing ring bearing for AGV small size diameter 475*335*45mm
Technical Parameters:
Type:RKS.901175101001
Outline Dimensions and Weight
Outside Diameter of Outer Ring (De):475mm
Inside Diameter of Inner Ring (Di):335mm
Height of Overall Bearing Assembly (H):45mm
Height of Inner Ring (b)/Height of Outer Ring (h):45mm/45mm
Mounting Holes
Bolt Circle in Outer Ring (Fe):450mm
Number Holes in Outer Ring (Ne):24
Size of Hole in Outer Ring (φ1):14
Bolt Circle in Inner Ring (Fi):360mm
Number Holes in Inner Ring (Ni):24
Size of Hole in Inner Ring (φ2):14
Other Technical Parameters:
Roller/Ball: GCr15/GCr15SiMn
Seal:NBR,High temperature Seal
Material:50Mn/42Crmo
Race Hardeness:55-62HRC
Material Hardeness:187-241HB
Tolerance (μm):+-800
Delivery time:Instock: 3days Outstock: 25-30days
Delivery way: Sea freight , Air freight , World Express
Quality Level: P0 P6 P5 P4 P2
Main market:
MEXICO,SPAN,SOUTH AFRICA,TURKEY,VIETNAM,INDONESIA,THAILAND,Southeast Asia,Middle
East,Russia,Europe,America
Brand: OEM,Customized Logo,Brand as your request
Service: Reply Within 24hours
RKS.901175101001 is four contact high speed ball small slewing bearing with None gear.
It composed of two seat rings, compact in structure and light in weight. The steel ball is in contact with the
arc raceway at four points and can bear axial force, radial force and overturning moment at the same time.
The slewing bearing be produced as your demands,
1 Offer the size for us, our technicist will design the bearing
2 Offer the type for us, If that is standard, we can produce directly
3 Offer the drawing for us, we can produce as the same as the drawing.
Advantages:
It can take axial load, overturning moment and radial load at the same time. Under the combined action of axial load and overturning moment, almost all steel balls participate in the load. When bearing pure axial load, the steel ball and the inner and outer ring raceways are in single-point contact. When the radial load exceeds a certain value, the steel ball and the inner and outer ring raceways respectively have two points of contact. At this time, the wear and friction torque will increase. In order to cope with the different combinations of axial force, overturning moment and radial force generated under various working conditions, the contact angle can be adjusted accordingly.
Application:
– Drilling rigs
– Mining Equipments
– Cranes
– Offshore Equipments
– Vehicles
– Machine Tools
– Wind Turbines
